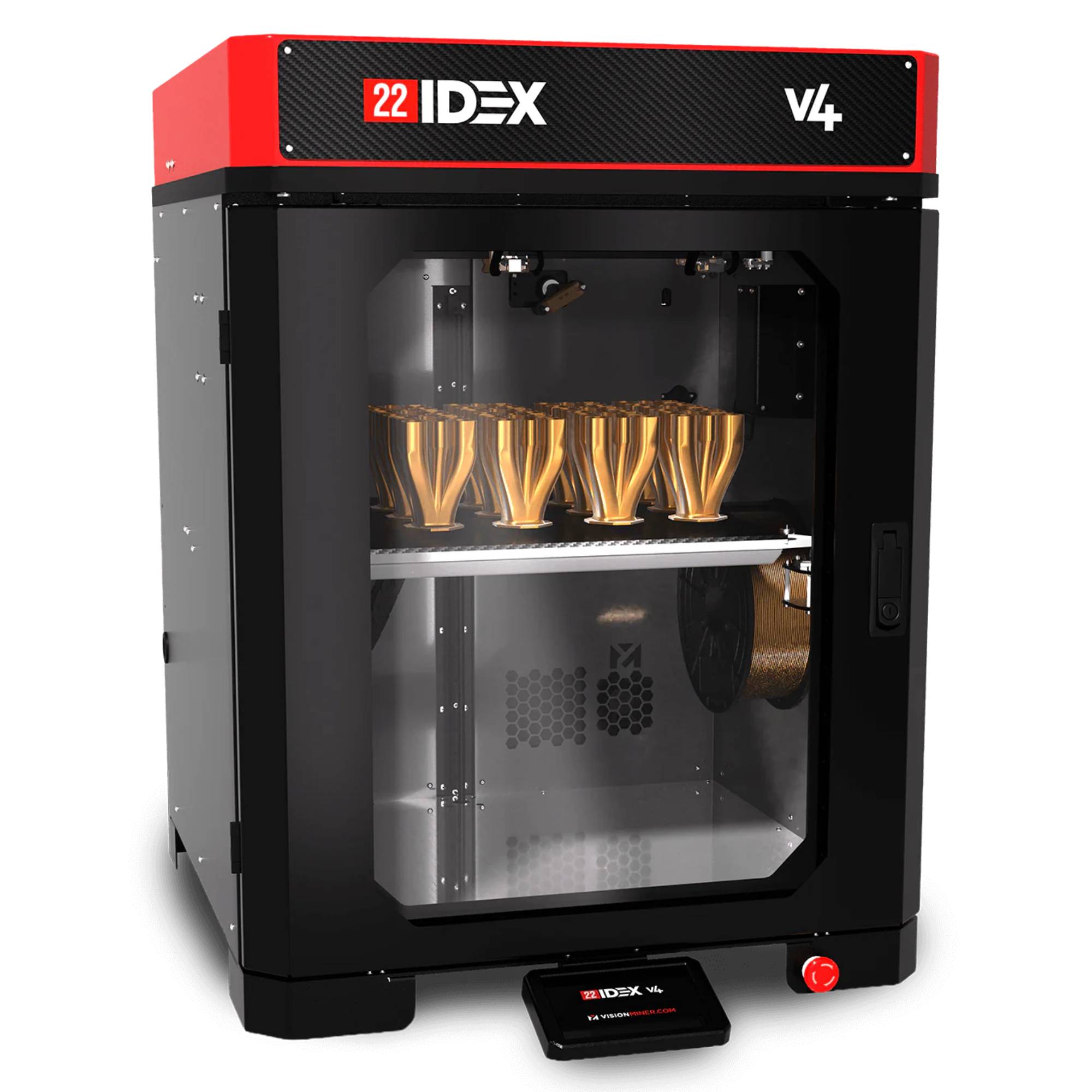

The Vision Miner 22 IDEX V4 Professional Bundle
As Vision Miner's German partner, Brinktec brings these high-temperature 3D printing systems into industrial practice. This includes expert consultation, material- and application-specific test prints, professional commissioning, and training for your employees.
An exceptional high-temperature 3D printer
Designed for industry, proven in professional prototyping.
The modular and clearly structured machine architecture of the Vision Miner 22 IDEX V4 enables quick access to maintenance-relevant components and minimizes downtime in production-related applications.
Robust machine architecture for maximum availability
The Vision Miner 22 IDEX V4 is based on a consistently industrial machine architecture designed for precision, stability, and continuous operation. A solid steel frame, backlash-free linear guides on all axes, and a quad-motorized X/Y gantry ensure high repeatability and consistent print quality – even with large-volume components and long run times.
The kinematic build platform with triple Z-axis mechanically self-levels before each print, ensuring a consistently perfect first layer. Automatic belt tensioning, high-quality industrial components, and abrasion-resistant build plates made of carbon and glass materials reduce maintenance and guarantee reproducible results in daily use.
The entire system is designed for reliability, ease of servicing and industrial process safety , making it ideally suited as a production-oriented manufacturing system for demanding applications.
Have we sparked your interest in an industrial Pragostroj 3D printer?
The Vision Miner 22 IDEX V4 is an uncompromisingly designed industrial high-temperature FDM 3D printer for demanding applications in production, maintenance, research, and development. Developed by Vision Miner , the system is specifically aimed at companies that need to reliably and reproducibly process high-performance thermoplastics such as PEEK, PEKK, ULTEM™ 9085/1010, PPSU, as well as carbon and glass fiber reinforced materials.
At the heart of the system are two independently operating IDEX extruders with a nozzle temperature of up to 500 °C , combined with an actively heated build chamber (> 100 °C) and a mechanically self-leveling 200 °C build platform with a triple Z-axis . This interplay enables low-stress components, excellent layer adhesion, and dimensional accuracy – even with large-volume functional components.
The 22 IDEX V4 is designed for continuous industrial use: an extremely rigid construction with linear guides, high-temperature motors, wide Kevlar belts, and Duet 3 electronics with open RepRap firmware ensures long-term precision and full control. Thanks to its open material system, users are not limited to proprietary filaments and can freely use any 1.75 mm material.
For safe operation in the production environment, the system features HEPA and activated carbon filtration as standard, extensive protection mechanisms against overheating and electrical faults, and integrated filament drying in the heated build chamber – a crucial advantage when using hygroscopic high-performance polymers.
With a build volume of 350 × 350 × 450 mm , IDEX functions such as mirror and duplicate printing, and preparation for future non-planar and multi-axis printing processes, the Vision Miner 22 IDEX V4 is a future-proof platform for professional additive manufacturing at shop-floor level.
Typical areas of application
Jigs, fixtures and mounting aids
Functional end components made of high-performance plastics
Spare parts and special components for industry & maintenance
Prototypes and small series production using series materials
